SQL Query to ODI Mapping Translation

Sql2Odi, Part Two: Translate a complex SELECT statement into an ODI Mapping

Discusses translation of complex SQL SELECT statements (queries) into ODI Mappings. Shows Sql2Odi in action.

Janis Rumnieks

• 7 min read

What we call a complex SQL SELECT statement really depends on the context. When talking about translating SQL queries into ODI Mappings, pretty much anything that goes beyond a trivial SELECT * FROM <a_single_source_table> can be called complex.

SQL statements are meant for humans to be written and for RDBMS servers like Oracle Database to be understood and executed. RDBMS servers benefit from a wealth of knowledge about the database we are querying and are willing to give us a lot of leeway about how we write those queries, to make it as easy as possible for us. Let me show you what I mean:

SELECT
    FIRST_NAME,
    AGE - '5' LIE_ABOUT_YOUR_AGE,
    REGION.*
FROM
    CUSTOMER
    INNER JOIN REGION ON "CUSTOMER_REGION_ID" = REGION.REGION_ID

We are selecting from two source tables, yet we have not bothered about specifying source tables for columns (apart from one instance in the filter). That is fine - the RDBMS server can fill that detail in for us by looking through all source tables, whilst also checking for column name duplicates. We can use numeric strings like '567' instead of proper numbers in our expressions, relying on the server to perform implicit conversion. And the * will always be substituted with a full list of columns from the source table(s).

All that makes it really convenient for us to write queries. But when it comes to parsing them, the convenience becomes a burden. However, despite lacking the knowledge the the RDBMS server possesses, we can still successfully parse and then generate an ODI Mapping for quite complex SELECT statements. Let us have a look at our Sql2Odi translator handling various challenges.

Rittman Mead's Sql2Odi Translator in Action

Let us start with the simplest of queries:

SELECT
  ORDER_ID,
  STATUS,
  ORDER_DATE
FROM
  ODI_DEMO.SRC_ORDERS

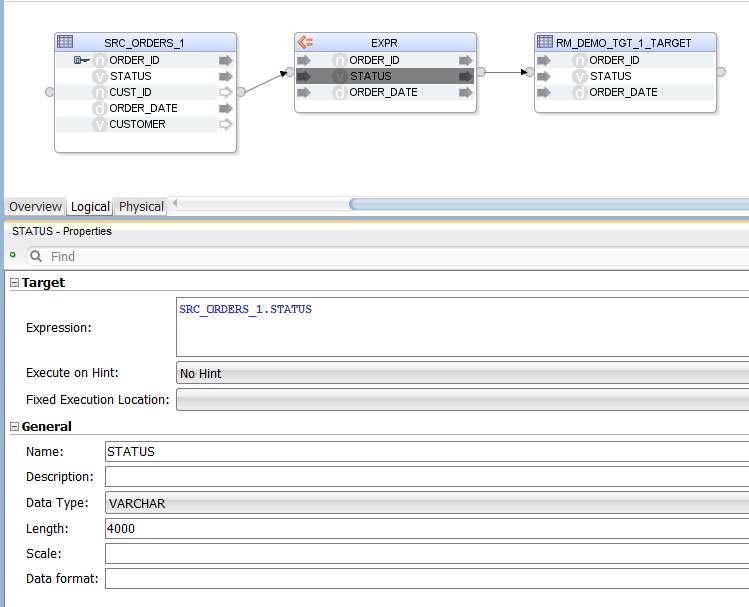

The result in ODI looks like this:

Sql2Odi has created an Expression, in which we have the list of selected columns. The columns are mapped to the target table by name (alternatively, they could be mapped by position). The target table is provided in the Sql2Odi metadata table along with the SELECT statement and other Mapping generation related configuration.

Can we replace the list of columns in the SELECT list with a *?

SELECT * FROM ODI_DEMO.SRC_ORDERS

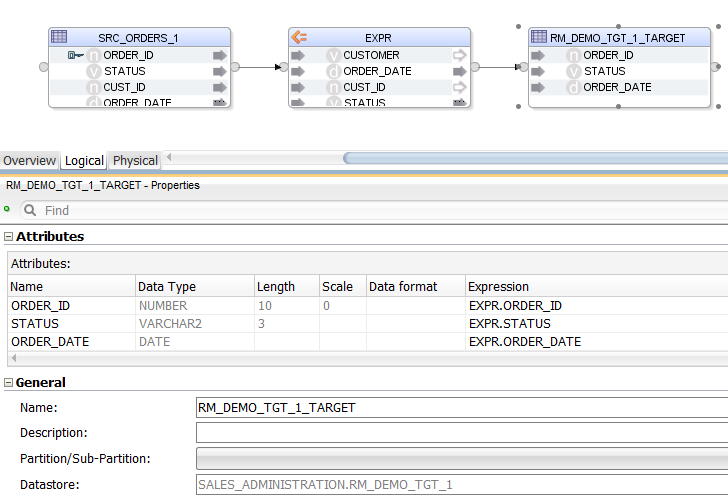

The only difference from the previously generated Mapping is that the Expression now has a full list of source table columns. We could not get the list of those columns while parsing the statement but we can look them up from the source ODI Datastore when generating the mapping. Groovy!

Let us increase the complexity by adding a JOIN, a WHERE filter and an ORDER BY clause to the mix:

SELECT
  SRC_ORDERS.*
FROM
  ODI_DEMO.SRC_ORDERS
  LEFT JOIN ODI_DEMO.SRC_CUSTOMER CUST ON
    SRC_ORDERS.CUST_ID = CUST.CUSTID
WHERE
  CUST.AGE BETWEEN 20 AND 50
ORDER BY CUST.AGE

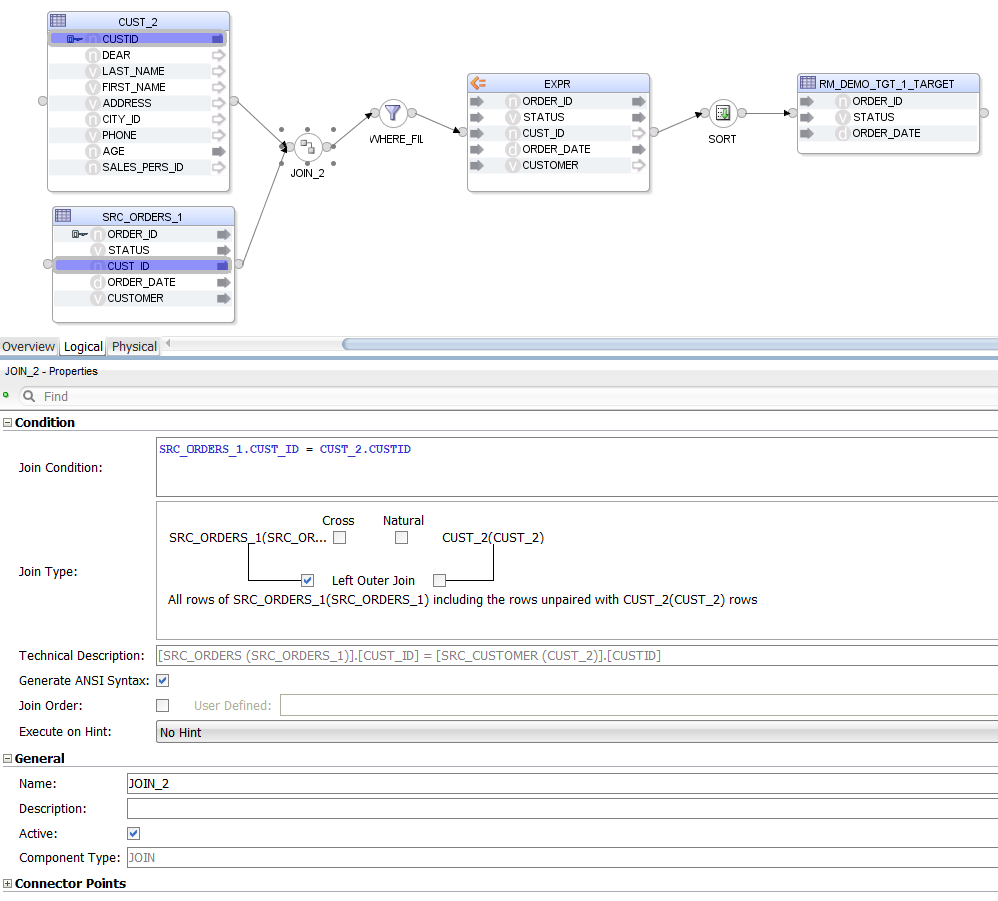

The Mapping looks more crowded now. Notice that we are selecting * from one source table only - again, that is not something that the parser alone can handle.

We are not using ODI Mapping Datasets - a design decision was made not to use them because of the way Sql2Odi handles subqueries.

Speaking of subqueries, let us give them a try - in the FROM clause you can source your data not only from tables but also from sub-SELECT statements or subqueries.

SELECT
  LAST_NAME,
  FIRST_NAME,
  LAST_NAME || ' ' || FIRST_NAME AS FULL_NAME,
  AGE,
  COALESCE(LARGE_CITY.CITY, ALL_CITY.CITY) CITY,
  LARGE_CITY.POPULATION
FROM
  ODI_DEMO.SRC_CUSTOMER CST
  INNER JOIN ODI_DEMO.SRC_CITY ALL_CITY ON ALL_CITY.CITY_ID = CST.CITY_ID
  LEFT JOIN (
    SELECT
      CITY_ID,
      UPPER(CITY) CITY,
      POPULATION
    FROM ODI_DEMO.SRC_CITY
    WHERE POPULATION > 750000
  ) LARGE_CITY ON LARGE_CITY.CITY_ID = CST.CITY_ID
WHERE AGE BETWEEN 25 AND 45

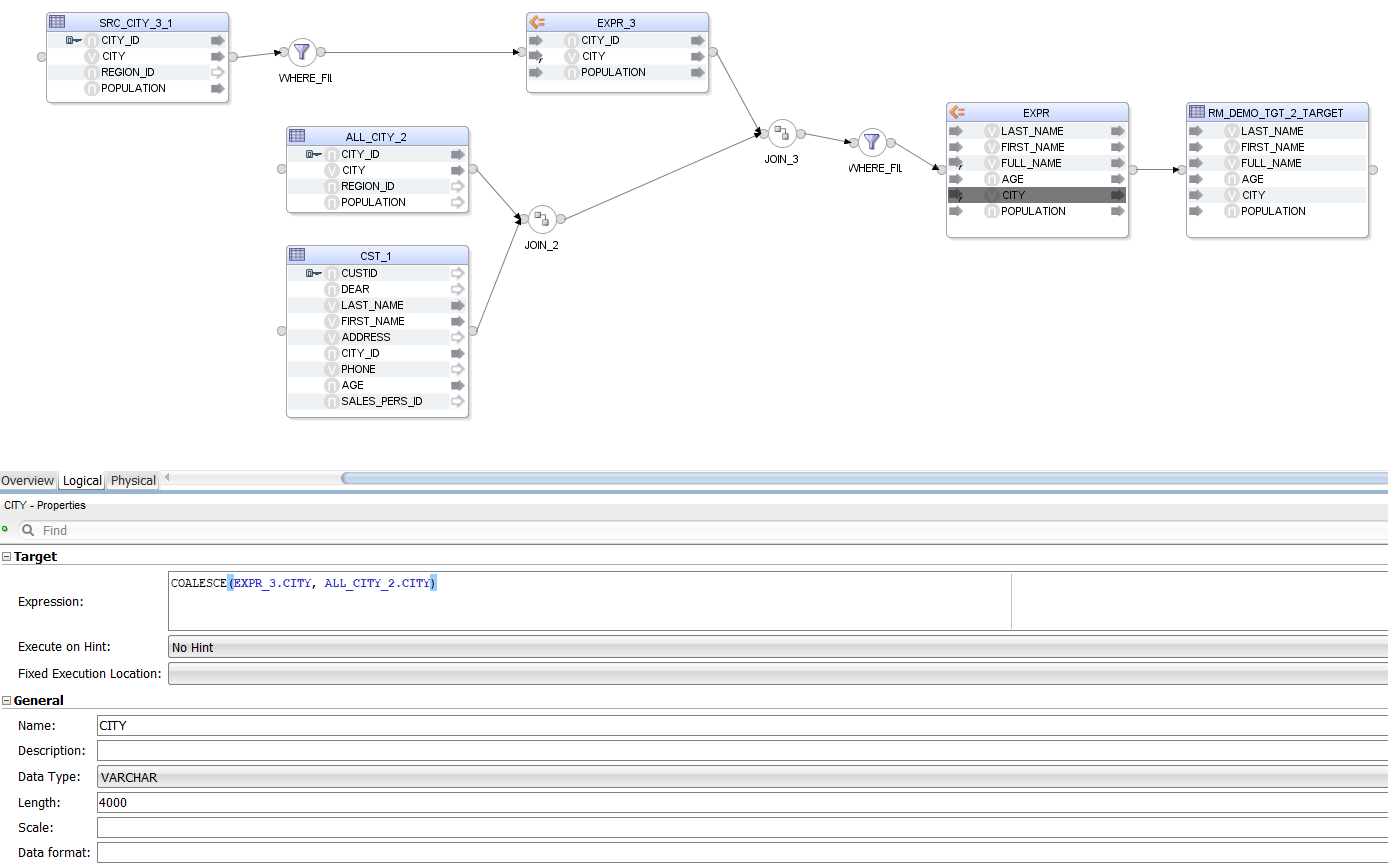

As we can see, a sub-SELECT statement is handled the same way as a source table, the only difference being that we also get a WHERE Filter and an Expression that together give us the data set of the subquery. All Components representing the subquery are suffixed with a 3 or _3_1 in the Mapping.

Now let us try Aggregates.

SELECT
  REGION,
  SUM(POPULATION) TOTAL_POPULATION,
  ROUND(MAX(SRC_CITY.POPULATION) / 1000000) BIGGEST_CITY_POPULATION_K,
  ROUND(MIN(SRC_CITY.POPULATION) / 1000000) SMALLEST_CITY_POPULATION_K
FROM
  ODI_DEMO.SRC_CITY
  INNER JOIN ODI_DEMO.SRC_REGION ON SRC_CITY.REGION_ID = SRC_REGION.REGION_ID
WHERE
  CITY_ID > 20 AND
  "SRC_CITY"."CITY_ID" < 1000 AND
  ODI_DEMO.SRC_CITY.CITY_ID != 999 AND
  COUNTRY IN ('USA', 'France', 'Germany', 'Great Britain', 'Japan')
GROUP BY
  REGION
HAVING
  SUM(POPULATION) > 10000 AND
  MIN(SRC_CITY.POPULATION) > 100 AND
  MAX("POPULATION") > 1000 AND
  AVG(ODI_DEMO.SRC_CITY.POPULATION) >= 5

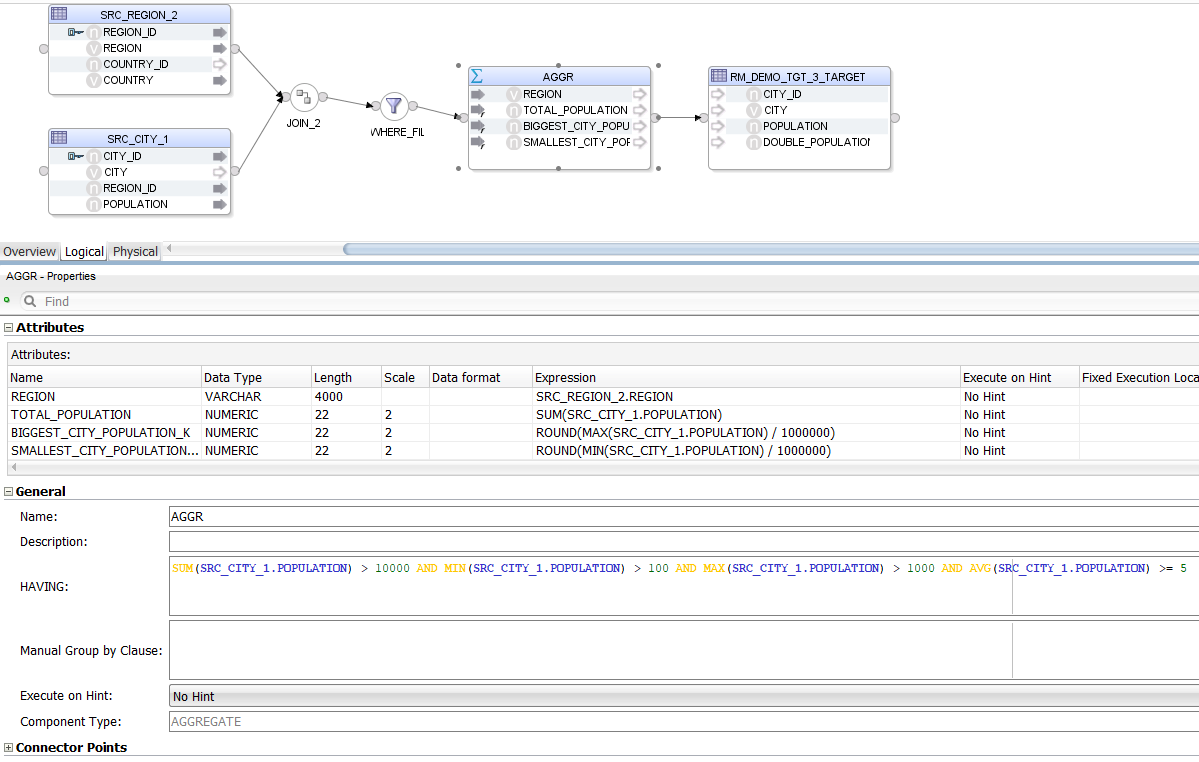

This time, instead of an Expression we have an Aggregate. The parser has no problem handling the many different "styles" of column references provided in the HAVING clause - all of them are rewritten to be understood by ODI.

Now let us throw different Expressions at it, to see how well they are handled.

SELECT
  REG_COUNTRY.COUNTRY,
  REG_COUNTRY.LOC,
  REG_COUNTRY.NR_OF_EURO_REG,

  LAST_NAME,
  LAST_NAME AS SURNAME,
  FIRST_NAME,
  FIRST_NAME || ' ' || LAST_NAME FULL_NAME,
  'String concatenation' || ' ' || FIRST_NAME || ' demo.' CONCAT_STRING,
  UPPER(LAST_NAME) || ' in UpperCase' AS LAST_NAME_UPPER,
  SUBSTR(TRIM(UPPER('     Name: ' || LAST_NAME || ' ' || FIRST_NAME || '    ')), 2, 10) TEXT_FUNC,
  TRANSLATE(UPPER(LAST_NAME), 'AEIOU', 'XXXXX') X_LAST_NAME,
  LENGTH(FIRST_NAME || ' ' || LAST_NAME) FULL_NAME_LEN,
  10 +  LENGTH(FIRST_NAME || ' ' || LAST_NAME) FULL_NAME_LEN_10P,
  10 *  LENGTH(FIRST_NAME || ' ' || LAST_NAME) FULL_NAME_LEN_10T,
  INSTR(UPPER(LAST_NAME), 'MC') MC_IN_LAST,

  1 + 2 + 3 + 4 +5+6+7 SIMP_SUM,
  1+2-3*4/5+(6*7+8-9)/(1+2+3) SUM2,
  ROUND(1+2-3*4/5+(6*7+8-9)/(1+2+3)) SUM2_ROUND1,
  ROUND(1+2-3*4/5+(6*7+8-9)/(1+2+3), 2) SUM2_ROUND2,
  FLOOR(ROUND(1+2-3*4/5+(6*7+8-9), 2) / ROUND((1+2+3), 2)) SUM2_ROUND3,

  SYSDATE DATE_NOW,
  SYSDATE AS CUR_DAT,
  1 + SYSDATE AS CURD_1,
  SYSDATE + 4 AS CURD_4,
  CURRENT_DATE AS CUR_ALT,
  ADD_MONTHS(SYSDATE, 1) CURD_1M,
  CURRENT_TIMESTAMP STAMP_NOW,
  LAST_DAY(SYSDATE) LAST_CURD,
  NEXT_DAY(LAST_DAY(SYSDATE), 2) LAST_NEXT_CURD,
  TO_CHAR(LAST_DAY(ADD_MONTHS(SYSDATE, 1)), 'DD/MM/YYYY') CHAR_CURT,

  CASE
    WHEN REG_COUNTRY.COUNTRY = 'USA' THEN NULL
    WHEN REG_COUNTRY.COUNTRY = 'France' THEN ROUND(1+2-3*4/5+(6*7+8-9)/(1+2+3), 2)
    WHEN REG_COUNTRY.COUNTRY = 'Great Britain' THEN FLOOR(345.56)
    WHEN REG_COUNTRY.COUNTRY = 'Germany' THEN MONTHS_BETWEEN(SYSDATE, SYSDATE+1000)
    ELSE NULL
  END SIM_CASE_NUM,

  CASE
    WHEN REG_COUNTRY.COUNTRY = 'USA' THEN NULL
    WHEN REG_COUNTRY.COUNTRY = 'France' THEN NEXT_DAY(LAST_DAY(SYSDATE+5), 2)
    WHEN REG_COUNTRY.COUNTRY = 'Great Britain' THEN NEXT_DAY(LAST_DAY(SYSDATE+40), 2)
    ELSE NULL
  END SIM_CASE_DATE,

  CASE
    WHEN REG_COUNTRY.COUNTRY = 'USA' THEN NULL
    WHEN REG_COUNTRY.COUNTRY = 'France' THEN UPPER(FIRST_NAME || ' ' || LAST_NAME)
    WHEN REG_COUNTRY.COUNTRY = 'Great Britain' THEN AGE || ' years of pain'
    ELSE NULL
  END SIM_CASE_CHAR,

  CASE
    WHEN REG_COUNTRY.COUNTRY = 'USA' THEN NULL
    WHEN REG_COUNTRY.COUNTRY = 'France' THEN FIRST_NAME
    WHEN REG_COUNTRY.COUNTRY = 'Great Britain' THEN LAST_NAME
    ELSE NULL
  END SIM_CASE_CHARCOL,

  CASE
    WHEN REG_COUNTRY.COUNTRY = 'USA' THEN NULL
    WHEN REG_COUNTRY.COUNTRY = 'France' THEN AGE
    WHEN REG_COUNTRY.COUNTRY = 'Great Britain' THEN AGE
    ELSE NULL
  END SIM_CASE_NUMCOL,

  '123' * 10 IMPI_NUM1,
  123 * '10' IMPI_NUM2

FROM
  ODI_DEMO.SRC_CUSTOMER
  INNER JOIN ODI_DEMO.SRC_CITY ON SRC_CITY.CITY_ID = SRC_CUSTOMER.CITY_ID
  INNER JOIN ODI_DEMO.SRC_REGION ON SRC_CITY.REGION_ID = SRC_REGION.REGION_ID
  INNER JOIN (
      SELECT COUNTRY_ID, COUNTRY, 'Europe' LOC, COUNT(DISTINCT REGION_ID) NR_OF_EURO_REG FROM ODI_DEMO.SRC_REGION WHERE COUNTRY IN ('France','Great Britain','Germany') GROUP BY COUNTRY_ID, COUNTRY
      UNION
      SELECT DISTINCT COUNTRY_ID, COUNTRY, 'Non-Europe' LOC, 0 NR_OF_EURO_REG FROM ODI_DEMO.SRC_REGION WHERE COUNTRY IN ('USA','Australia','Japan')
      ORDER BY NR_OF_EURO_REG
    ) REG_COUNTRY ON SRC_REGION.COUNTRY_ID = REG_COUNTRY.COUNTRY_ID
WHERE
  REG_COUNTRY.COUNTRY IN ('USA', 'France', 'Great Britain', 'Germany', 'Australia')
ORDER BY
  LOC, COUNTRY

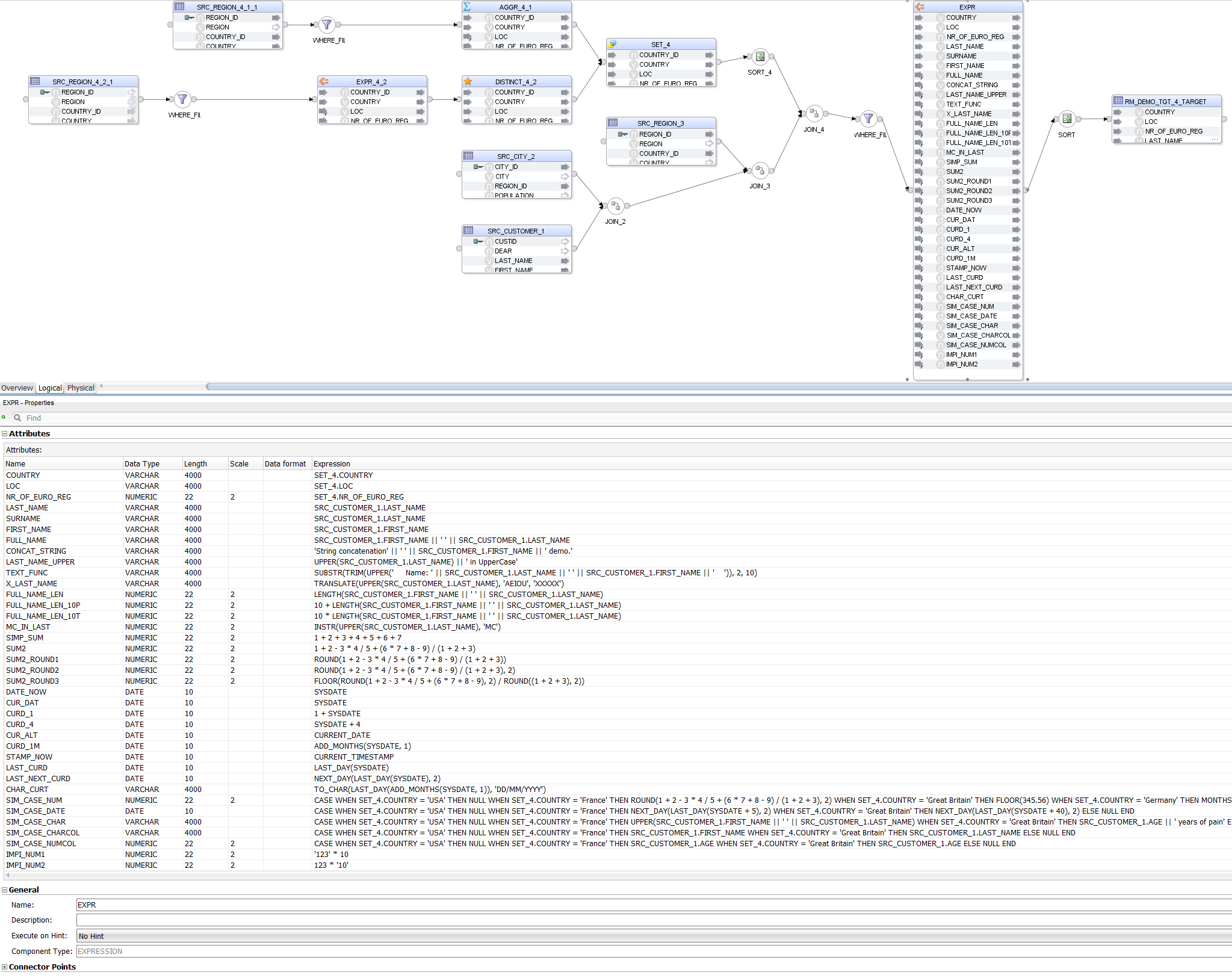

Notice that, apart from parsing the different Expressions, Sql2Odi also resolves data types:

  • 1 + SYSDATE is correctly resolved as a DATE value whereas TO_CHAR(LAST_DAY(ADD_MONTHS(SYSDATE, 1)), 'DD/MM/YYYY') CHAR_CURT is recognised as a VARCHAR value - because of the TO_CHAR function;
  • LAST_NAME and FIRST_NAME are resolved as VARCHAR values because that is their type in the source table;
  • AGE || ' years of pain' is resolved as a VARCHAR despite AGE being a numeric value - because of the concatenation operator;
  • More challenging is data type resolution for CASE statements, but those are handled based on the datatypes we encounter in the THEN and ELSE parts of the statement.

Also notice that we have a UNION joiner for the two subqueries - that is translated into an ODI Set Component.

As we can see, Sql2Odi is capable of handling quite complex SELECT statements. Alas, that does not mean it can handle 100% of them - Oracle hierarchical queries, anything involving PIVOTs, the old Oracle (+) notation, the WITH statement - those are a few examples of constructs Sql2Odi, as of this writing, cannot yet handle.

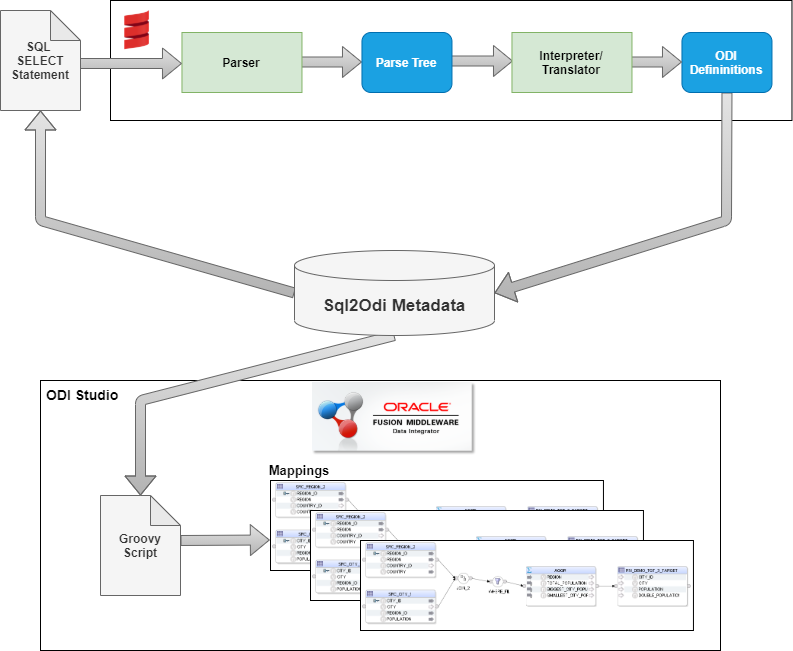

Sql2Odi - what is under the hood?

Scala's Combinator Parsing library was used for lexical and syntactic analysis. We went with a context-free grammar definition for the SELECT statement, because our goal was never to establish if a SELECT statement is 100% valid - only the RDBMS server can do that. Hence we start with the assumption that the SELECT statement is valid. An invalid SELECT statement, depending on the nature of the error, may or may not result in a parsing error.

For example, the Expression ADD_MONTHS(CUSTOMER.FIRST_NAME, 3) is obviously wrong but our parser assumes that the FIRST_NAME column is a DATE value.

Part of the parsing-translation process was also data type recognition. In the example above, the parser recognises that the function being used returns a datetime value. Therefore it concludes that the whole expression, regardless of what the input to that function is - a column, a constant or another complex Expression - will always be a DATE value.

The output of the Translator is a structured data value containing definitions for ODI Mapping Components and their joins. I chose JSON format but XML would have done the trick as well.

The ODI Mapping definitions are then read by a Groovy script from within ODI Studio and Mappings are generated one by one.

Mapping generation takes much longer than parsing. Parsing for a mapping is done in a split second whereas generating an ODI Mapping, depending on its size, can take a couple of seconds.

Conclusion

It is possible to convert SQL SELECT statements to ODI Mappings, even quite complex ones. This can make migrations from SQL-based legacy ETL tools to ODI much quicker, allows to refactor an SQL-based ETL prototype to ODI without having to implement the same data extraction and transformation logic twice.
