Using SQL to Query JSON Files with Apache Drill

I wrote recently about what Apache Drill is, and how to use it with OBIEE. In this post I wanted to demonstrate its great power in action for a requirement that came up recently. We wanted to analyse our blog traffic, broken down by blog author. Whilst we have Google Analytics to provide the traffic, it doesn't include the blog author. This is held within the blog platform, which is Ghost. The common field between the two datasets is the post "slug". From Ghost we could get a dump of the data in JSON format. We needed to find a quick way to analyse and extract from this JSON a list of post slugs and associated author.

One option would be to load the JSON into a RDBMS and process it from within there, running SQL queries to extract the data required. For a long-term large-scale solution, maybe this would be appropriate. But all we wanted to do here was query a single file, initially just as a one-off. Enter Apache Drill. Drill can run on a single laptop (or massively clustered, if you need it). It provides a SQL engine on top of various data sources, including text data on local or distributed file systems (such as HDFS).

You can use Drill to dive straight into the json:

0: jdbc:drill:zk=local> use dfs;
+-------+----------------------------------+
|  ok   |             summary              |
+-------+----------------------------------+
| true  | Default schema changed to [dfs]  |
+-------+----------------------------------+
1 row selected (0.076 seconds)
0: jdbc:drill:zk=local> select * from `/Users/rmoff/Downloads/rittman-mead.ghost.2016-11-01.json` limit 1;
+----+
| db |
+----+
| [{"meta":{"exported_on":1478002781679,"version":"009"},"data":{"permissions":[{"id":1,"uuid":"3b24011e-4ad5-42ed-8087-28688af7d362","name":"Export database","object_type":"db","action_type":"exportContent","created_at":"2016-05-23T11:24:47.000Z","created_by":1,"updated_at":"2016-05-23T11:24:47.000Z","updated_by":1},{"id":2,"uuid":"55b92b4a-9db5-4c7f-8fba-8065c1b4b7d8","name":"Import database","object_type":"db","action_type":"importContent","created_at":"2016-05-23T11:24:47.000Z","created_by":1,"updated_at":"2016-05-23T11:24:47.000Z","updated_by":1},{"id":3,"uuid":"df98f338-5d8c-4683-8ac7-fa94dd43d2f1","name":"Delete all content","object_type":"db","action_type":"deleteAllContent","created_at":"2016-05-23T11:24:47.000Z","created_by":1,"updated_at":"2016-05-23T11:24:47.000Z","updated_by":1},{"id":4,"uuid":"a3b8c5c7-7d78-442f-860b-1cea139e1dfc","name":"Send mail","object_type":"mail","action_

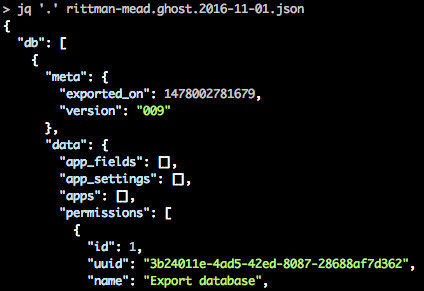

But from this we can see the JSON object is a single column db of array type. Let's take a brief detour into one of my favourite commandline tools - jq. This let's you format, filter, and extract values from JSON. Here we can use it to get an idea of how the data's structured. We can do this in Drill, but jq gives us a headstart:

We can see that under the db array are two elements; meta and data. Let's take meta as a simple example to expose through Drill, and then build from there into the user data that we're actually after.

Since the root data element (db) is an array, we need to FLATTEN it:

0: jdbc:drill:zk=local> select flatten(db) from `/Users/rmoff/Downloads/rittman-mead.ghost.2016-11-01.json` limit 1;
+--------+
| EXPR$0 |
+--------+
| {"meta":{"exported_on":1478002781679,"version":"009"},"data":{"permissions":[{"id":1,"uuid":"3b24011e-4ad5-42ed-8087-28688af7d362","name":"Export database","object_type":"db","action_type":"exportContent","created_at":"2016-05-23T11:24:47.000Z","created_by":1,"updated_at":"2016-05-23T11:24:47.000Z","updated_by":1},{"id":2,"uuid":"55b92b4a-9db5-4c7f-8fba-8065c1b4b7d8","name":"Import database","object_type":"db","action_type":"importContent","created_at":"2016-05-23T11:24:47.000Z","created_by":1,"updated_at":"2016-05-23T11:24:47.000Z","u

Now let's query the meta element itself:

0: jdbc:drill:zk=local> with db as (select flatten(db) from `/Users/rmoff/Downloads/rittman-mead.ghost.2016-11-01.json`) select db.meta from db limit 1;
Nov 01, 2016 2:18:31 PM org.apache.calcite.sql.validate.SqlValidatorException <init>
SEVERE: org.apache.calcite.sql.validate.SqlValidatorException: Column 'meta' not found in table 'db'
Nov 01, 2016 2:18:31 PM org.apache.calcite.runtime.CalciteException <init>
SEVERE: org.apache.calcite.runtime.CalciteContextException: From line 1, column 108 to line 1, column 111: Column 'meta' not found in table 'db'
Error: VALIDATION ERROR: From line 1, column 108 to line 1, column 111: Column 'meta' not found in table 'db'

SQL Query null

[Error Id: 9cb4aa98-d522-42bb-bd69-43bc3101b40e on 192.168.10.72:31010] (state=,code=0)

This didn't work, because if you look closely at the above FLATTEN, the resulting column is called EXPR$0, so we need to alias it in order to be able to reference it:

0: jdbc:drill:zk=local> select flatten(db) as db from `/Users/rmoff/Downloads/rittman-mead.ghost.2016-11-01.json`;
+----+
| db |
+----+
| {"meta":{"exported_on":1478002781679,"version":"009"},"data":{"permissions":[{"id":1,"uuid":"3b24011e-4ad5-42ed-8087-28688af7d362","name":"Export database","object_type":"db","action_type":"exportConten

Having done this, I'll put the FLATTEN query as a subquery using the WITH syntax, and from that SELECT just the meta elements:

0: jdbc:drill:zk=local> with ghost as (select flatten(db) as db from `/Users/rmoff/Downloads/rittman-mead.ghost.2016-11-01.json`) select ghost.db.meta from ghost limit 1;
+------------------------------------------------+
|                     EXPR$0                     |
+------------------------------------------------+
| {"exported_on":1478002781679,"version":"009"}  |
+------------------------------------------------+
1 row selected (0.317 seconds)

Note that the column is EXPR$0 because we've not defined a name for it. Let's fix that:

0: jdbc:drill:zk=local> with ghost as (select flatten(db) as db from `/Users/rmoff/Downloads/rittman-mead.ghost.2016-11-01.json`) select ghost.db.meta as meta from ghost limit 1;
+------------------------------------------------+
|                      meta                      |
+------------------------------------------------+
| {"exported_on":1478002781679,"version":"009"}  |
+------------------------------------------------+
1 row selected (0.323 seconds)
0: jdbc:drill:zk=local>

Why's that matter? Because it means that we can continue to select elements from within it.

We could continue to nest the queries, but it gets messy to read, and complex to debug any issues. Let's take this meta element as a base one from which we want to query, and define it as a VIEW:

0: jdbc:drill:zk=local> create or replace view dfs.tmp.ghost_meta as with ghost as (select flatten(db) as db from `/Users/rmoff/Downloads/rittman-mead.ghost.2016-11-01.json`) select ghost.db.meta as meta from ghost;
+-------+-------------------------------------------------------------+
|  ok   |                           summary                           |
+-------+-------------------------------------------------------------+
| true  | View 'ghost_meta' created successfully in 'dfs.tmp' schema  |
+-------+-------------------------------------------------------------+
1 row selected (0.123 seconds)

Now we can select from the view:

0: jdbc:drill:zk=local> select m.meta.exported_on as exported_on, m.meta.version as version from dfs.tmp.ghost_meta m;
+----------------+----------+
|  exported_on   | version  |
+----------------+----------+
| 1478002781679  | 009      |
+----------------+----------+
1 row selected (0.337 seconds)

Remember that when you're selected nested elements you must alias the object that you're selecting from. If you don't, then Drill assumes that the first element in the column name (for example, meta.exported_on) is the table name (meta), and you'll get an error:

Error: VALIDATION ERROR: From line 1, column 8 to line 1, column 11: Table 'meta' not found

So having understood how to isolate and query the meta element in the JSON, let's progress onto what we're actually after - the name of the author of each post, and associated 'slug'.

Using jq again we can see the structure of the JSON file, with the code taken from here:

> jq 'path(..)|[.[]|tostring]|join("/")' rittman-mead.ghost.2016-11-01.json |grep --color=never post|more
"db/0/data/posts"
"db/0/data/posts/0"
"db/0/data/posts/0/id"
"db/0/data/posts/0/uuid"
"db/0/data/posts/0/title"
[...]

So Posts data is under the data.posts element, and from manually poking around we can see that user data is under data.users element.

Back to Drill, we'll create views based on the same pattern as we used for meta above; flattening the array and naming the column:

use dfs.tmp;
create or replace view ghost_posts as select flatten(ghost.db.data.posts) post from ghost;
create or replace view ghost_users as select flatten(ghost.db.data.users) `user` from ghost;

The ghost view is the one created above, in the dfs.tmp schema. With these two views created, we can select values from each:

0: jdbc:drill:zk=local> select u.`user`.id,u.`user`.name from ghost_users u where u.`user`.name = 'Robin Moffatt';
+---------+----------------+
| EXPR$0  |     EXPR$1     |
+---------+----------------+
| 15      | Robin Moffatt  |
+---------+----------------+
1 row selected (0.37 seconds)

0: jdbc:drill:zk=local> select p.post.title,p.post.slug,p.post.author_id from ghost_posts p where p.post.title like '%Drill';
+----------------------------------+----------------------------------+---------+
|              EXPR$0              |              EXPR$1              | EXPR$2  |
+----------------------------------+----------------------------------+---------+
| An Introduction to Apache Drill  | an-introduction-to-apache-drill  | 15      |
+----------------------------------+----------------------------------+---------+
1 row selected (0.385 seconds)

and join them:

0: jdbc:drill:zk=local> select p.post.slug as post_slug,u.`user`.name as author from ghost_posts p inner join ghost_users u on p.post.author_id = u.`user`.id where u.`user`.name like 'Robin%' and p.post.status='published' order by p.post.created_at desc limit 5;
+------------------------------------------------------------------------------------+----------------+
|                                     post_slug                                      |     author     |
+------------------------------------------------------------------------------------+----------------+
| connecting-oracle-data-visualization-desktop-to-google-analytics-and-google-drive  | Robin Moffatt  |
| obiee-and-odi-security-updates-october-2016                                        | Robin Moffatt  |
| otn-appreciation-day-obiees-bi-server                                              | Robin Moffatt  |
| poug                                                                               | Robin Moffatt  |
| all-you-ever-wanted-to-know-about-obiee-performance-but-were-too-afraid-to-ask     | Robin Moffatt  |
+------------------------------------------------------------------------------------+----------------+
5 rows selected (1.06 seconds)

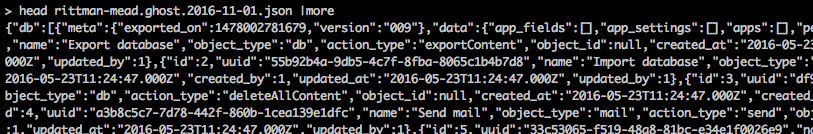

This is pretty cool. From a 32MB single-row JSON file:

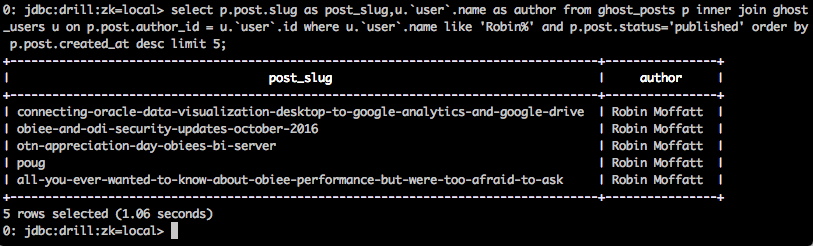

to being able to query it with standard SQL like this:

all with a single tool that can run on a laptop or desktop, and supports ODBC and JDBC for use with your favourite BI tools. For data exploration and understanding new datasets, Apache Drill really does rock!
