Sql2Odi now supports the WITH statement

The Rittman Mead's Sql2Odi tool that converts SQL SELECT statements to ODI Mappings, now supports the SQL WITH statement as well. (For an overview of our tool's capabilities, please refer to our blog posts here and here.)

The Case for WITH Statements

If a SELECT statement is complex, in particular if it queries data from multiple source tables and relies on subqueries to do so, there is a good chance that rewriting it as a WITH statement will make it easier to read and understand. Let me show you what I mean...

SELECT
  LAST_NAME,
  FIRST_NAME,
  LAST_NAME || ' ' || FIRST_NAME AS FULL_NAME,
  AGE,
  COALESCE(LARGE_CITY.CITY, ALL_CITY.CITY) CITY,
  LARGE_CITY.POPULATION
FROM
  ODI_DEMO.SRC_CUSTOMER CST
  INNER JOIN ODI_DEMO.SRC_CITY ALL_CITY ON ALL_CITY.CITY_ID = CST.CITY_ID
  LEFT JOIN (
    SELECT
      CITY_ID,
      UPPER(CITY) CITY,
      POPULATION
    FROM ODI_DEMO.SRC_CITY
    WHERE POPULATION > 750000
  ) LARGE_CITY ON LARGE_CITY.CITY_ID = CST.CITY_ID
WHERE AGE BETWEEN 25 AND 45

This is an example from my original blog posts. Whilst one could argue that the query is not that complex, it does contain a subquery, which means that the query does not read nicely from top to bottom - you will likely need to look at the subquery first for the master query to make sense to you.

Same query, rewritten as a WITH statement, looks like this:

WITH
BASE AS (
SELECT
  LAST_NAME,
  FIRST_NAME,
  LAST_NAME || ' ' || FIRST_NAME AS FULL_NAME,
  AGE,
  CITY_ID
FROM
  ODI_DEMO.SRC_CUSTOMER CST
),
LARGE_CITY AS (
  SELECT
    CITY_ID,
    UPPER(CITY) CITY,
    POPULATION
  FROM ODI_DEMO.SRC_CITY
  WHERE POPULATION > 750000
),
ALL_DATA AS (
  SELECT
    LAST_NAME,
    FIRST_NAME,
    FULL_NAME,
    AGE,
    COALESCE(LARGE_CITY.CITY, ALL_CITY.CITY) CITY,
    LARGE_CITY.POPULATION
  FROM
    BASE CST
    INNER JOIN ODI_DEMO.SRC_CITY ALL_CITY ON ALL_CITY.CITY_ID = CST.CITY_ID
    LEFT JOIN LARGE_CITY ON LARGE_CITY.CITY_ID = CST.CITY_ID
  WHERE AGE BETWEEN 25 AND 45
)
SELECT * FROM ALL_DATA

Whilst it is longer, it reads nicely from top to bottom. And the more complex the query, the more the comprehensibility will matter.

The first version of our Sql2Odi tool did not support WITH statements. But it does now.

Convert a WITH Statement to an ODI Mapping

The process is same old - first we add the two statements to our metadata table, add some additional data to it, like the ODI Project and Folder names, the name of the Mapping, the Target table that we want to populate and how to map the query result to the Target table, names of Knowledge Modules and their config, etc.

After running the Sql2Odi Parser, which now happily accepts WITH statements, and the Sql2Odi ODI Content Generator, we end up with two mappings:

What do we see when we open the mappings?

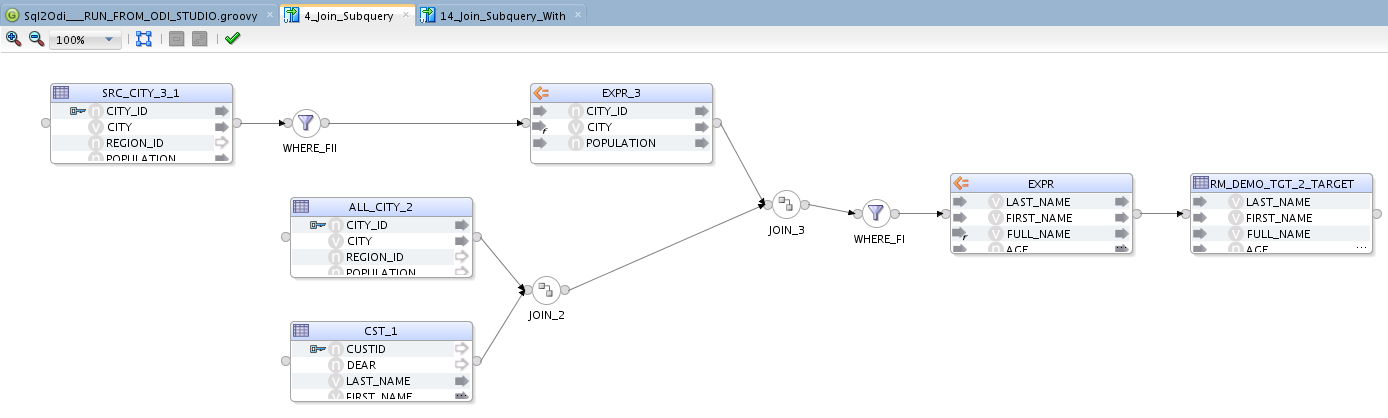

The original SELECT statement based mappings is generated like this:

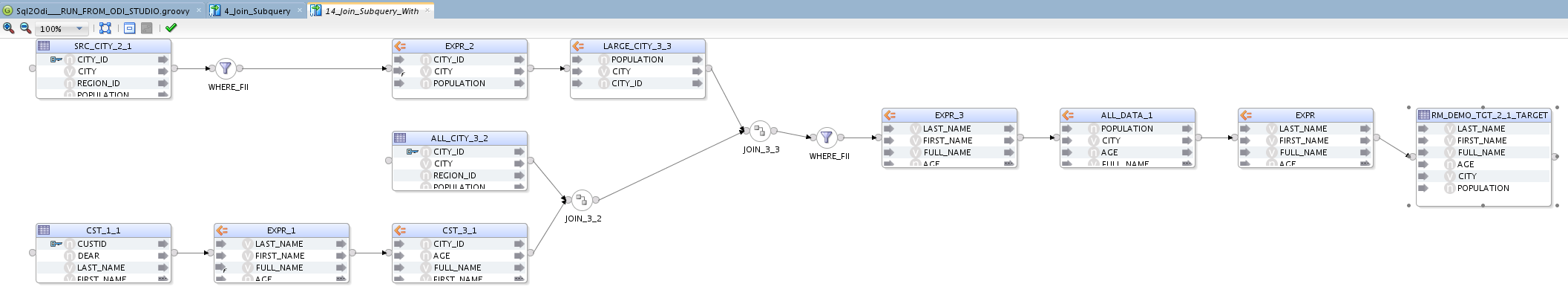

The new WITH statement mapping, though it queries the same data in pretty much the same way, is more verbose:

The additional EXPRESSION components are added to represent references to the WITH subqueries. While the mapping is now busier than the original SELECT, there should be no noticeable performance penalty. Both mappings generate the exact same output.

Contact the team for more information about the Sql2Odi tool.
